ALL DIMENSIONS OF THE "SF" SOLAR FLASHING CAN BE MODIFIED
TO MEET YOUR SPECIFICATIONS

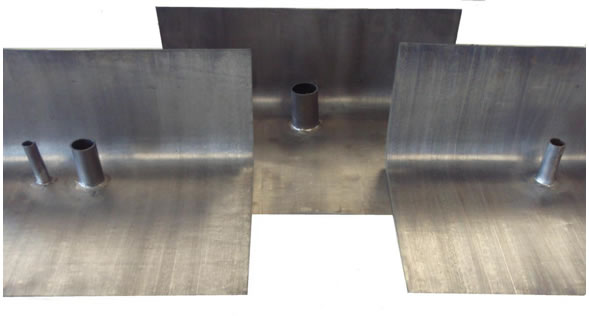

CONSTRUCTION CHARACTERISTICS OF THE "SF" SERIES SOLAR FLASHING

SANTA ROSA LEAD PRODUCTS (SRLP) MANUFACTURES AN ALL-LEAD FLASHING
FABRICATED FROM PURE LEAD.

THE STANDARD FLASHING CONSISTS OF A CYLINDRICAL (TUBE) RISER WHERE A STEEL-REINFORCED BOOT IS NOT REQUIRED.
STANDARD SOLAR FLASHINGS ARE AVAILABLE IN 2.5# LEAD ON A 12"x12" BASE
WITH A 2"-TALL RISER.
SOME MODELS OF THE "SF" SERIES SOLAR FLASHINGS ALSO HAVE AN EXTRA 3/8" I.D. RISER TO ACCOMMODATE SENSOR WIRE(S).
"SF" SERIES SOLAR FLASHINGS CAN ALSO BE MADE OF 4# LEAD, IF REQUESTED.
OTHER BASE SIZES AND RISER HEIGHTS CAN EASILY BE MANUFACTURED UPON
REQUEST.
"SF" SERIES SOLAR FLASHINGS CAN ALSO BE MADE PRE-CUT TO A
PITCH IF REQUIRED, ALTHOUGH MOST SOLAR APPLICATIONS ARE 90-DEGREES
TO THE ROOF (FLAT PITCH).

STOCK SIZES INCLUDE (OTHER SIZES AVAILABLE UPON REQUEST)

• 5/8" I.D. (SF5/8)

• 3/4" I.D. (SF3/4)

• 1.0" I.D. (SF1)

• 1-1/4" I.D. (SF1-1/4)

• 1-1/2" I.D. (SF1-1/2)

• 1-3/4" I.D. (SF1-3/4)

• 2.0" I.D. (SF2)

• 3/4" I.D. x2 (SFHC2)

• 3/4" I.D. w/ SENSOR WIRE (SF3/4+WIR)

• 3/4" I.D. x2 w/ SENSOR WIRE (SFHC)

When Properly Installed , The "SF" Series Solar Flashing will
Last The Life of Any Roofing System
